Joerns UltraCare XT Electric Adjustable Full Electric Healthcare Hospital Bed

SKU:JHUCXTBED
MPN:UCXTBED
UOM:Each
Earn Loyalty Points+2294

Buy more to unlock extra rewards!

PayPal Pay Later

Pay low as $105.13/month with Pay Pal's pay later
Joerns UltraCare XT Electric Adjustable Full Electric Healthcare Hospital Bed
$2,294.00
$2,607.00Save $313.00
Free Shipping

Free Shipping

Secure transaction
Your payment information is processed securely.
Made in USA
Made in USA

Specifications

Joerns UltraCare XT healthcare bed
Specifications Bed size - 80" Bed size - 76"
Support surface 35" x 80" 35" x 76"
Overall head panel length 83½" 80"
Standard overall head and foot panel length 85½" 82"
AdvanceCare head and foot panel length 93.75" 88.75"
Width 35" 35"
Width with assist device brackets 36¼" 36¼"
Width with assist device brackets 41" 41"
Low height 8¾" 8¾"
High height 30" 30"
Under bed clearance* 23¾" 23¾"
Maximum back angle 65° 65°
Maximum knee angle 35° 35°
Maximum height support surface platform above floor 30" 30"
Minimum height support surface platform above floor 7" 7"
Mattress support platform translation - entire travel range 1" 1"
Mobility height without UltraLock 7" - 30" 7" - 30"
Mobility height with UltraLock 7" - 30" 7" - 30"
Mains voltage 120 VAC 120 VAC
Frequency 60 Hz 60 Hz
Input current 4.0 Amps 4.0 Amps
Control box output voltage 24V DC 24V DC
Duty cycle 10% (2 min. on/18 min. off) 10% (2 min. on/18 min. off)
Circuit protection Auto reset current sensor Auto reset current sensor
Safe working load 500 lbs. 500 lbs.
Product weight 220 lbs. 220 lbs.
Note: *Ample clearance between 14" and 30"
**Overall space required for AdvanceCare positioning
***Includes bedding, resident, support surface, and all accessories

Description

Joerns UltraCare XT Healthcare Bed

Advanced Comfort. Smart Care. Personalized Healing.

Joerns UltraCare® XT is a premium full electric healthcare bed engineered to deliver exceptional comfort, safety, and smart care functionality across a wide spectrum of clinical and home care environments. Built to support a broader range of patients with its expanded 650 lb. weight capacity, the UltraCare XT ensures every individual receives dignified, tailored care-especially in bariatric and long-term care settings.

Joerns® UltraCare® XT Bed comes standard with: 650 lbs. SWL with 7" to 30" height range, Standard Soft Tone Color, Grid Deck Surface, Quick Care Motors with Advanced Care Positioning and Standard, Grounded Electronics, Hospital Grade 3 Prong Outlet Plug. (UltraCare® Fixed Width Frame 35" x 80")

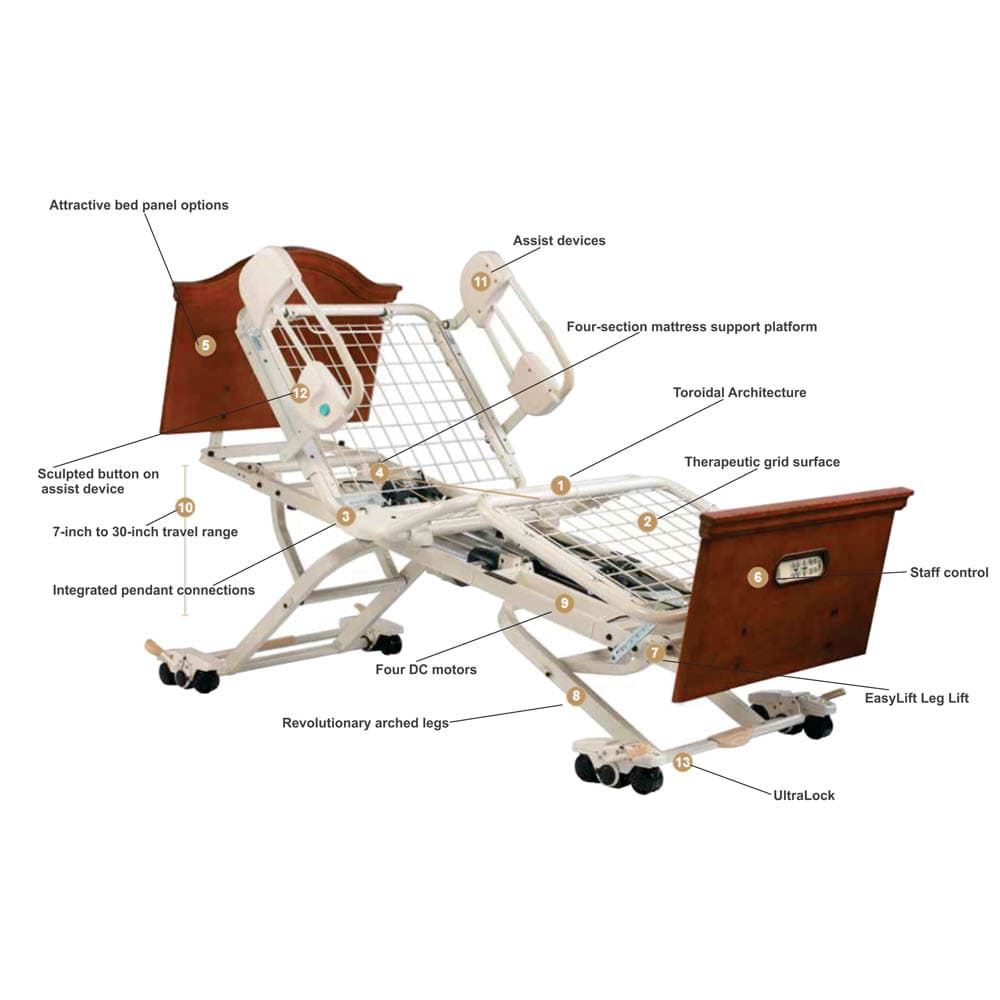

Key Features & Benefits:

  • High-Capacity, Durable Construction:
    Featuring Joerns' proprietary Toroidal Architecture™, the reinforced steel frame supports up to 650 lbs, ensuring long-lasting performance and safety for both standard and bariatric patients.
  • Advanced Positioning for Patient Comfort & Clinical Efficiency:
    The AdvanceCare™ positioning system, now standard, offers 30°/45° comfort pauses, allowing caregivers to position residents with greater ease while reducing the risk of pressure injuries and enhancing patient dignity.
  • Smart Connected Care with Connexio® Integration:
    The UltraCare XT is Connexio®-ready, enabling seamless integration into your facility’s digital ecosystem. Gain real-time visibility into equipment usage, staff interactions, and resident status-empowering clinical decision-making and operational efficiency.
  • Extendable Mattress Support Platform:
    Accommodates multiple body types and therapeutic needs with a four-section sleep surface that adjusts for back, knee, and leg elevation, promoting proper alignment and reducing skin shear risk.
  • Enhanced Clinical Control & Safety:
    Optional staff control features include advanced lockouts, ergonomic design, and AutoTransfer™ Height Programming, allowing caregivers to preset personalized entry and exit heights for each patient.
  • Mobility and Safety at Any Height:
    The versatile UltraLock system-available at the foot end or both head and foot-ensures maximum bed stability or mobility, depending on patient care needs.

Joerns EasyCare® Standard Features:

  • Fast speed hi-lo
  • Grid sleep surface
  • Baseboard bumper
  • 7" to 30" travel range
  • Welded tubular frame
  • Roll-in-low lock system
  • Whisper quiet DC motors
  • Foot end mattress side stops
  • Cable connection for optional staff control
  • Wide stable base
  • Battery pack cable
  • Heavy-duty casters
  • SoftTone frame color
  • EasyLift leg positioner
  • 76" or 80" sleep surface
  • Patented lifting mechanism
  • Patented toroidal construction
  • Pendant connections on both left and right side

Ideal For:

  • Skilled nursing and long-term care facilities
  • Post-acute rehabilitation centers
  • Home healthcare providers
  • Bariatric and complex care units

Note: More Headboard and Footboard Panel options and Mattresses are available upon special request. Please call or email us for a quote.

Warranty

  • Manufacturer warrants this product for a period of five years from the date of delivery against defects in materials and workmanship under normal use and service.
  • This five year warranty includes all mechanical and electrical components.
  • Steel structural components on beds are covered under warranty for a period of 15 years from the date of delivery.
  • Welds are covered under warranty for the 20 years of the product.
  • Damage caused by use in unsuitable environmental conditions, abuse or failure to maintain the product in accordance with client and service instructions is not covered.
  • Any alteration, modification, or repair unless performed by or authorized in writing by manufacturer voids this warranty.
  • Parts that wear from normal use, such as DC batteries, are not covered under the stated warranty but are covered for 90 days after date of delivery.
  • Parts under warranty will be covered at no cost. Any labor cost for service under warranty is not covered as per our terms of sale.
  • Standard Manufacturer Terms & Conditions are applicable for Warranty of this product.
  • Click here for detailed warranty…

Please call us for specific details.

Return

  • Manufacturer provides 30 day return policy on unopened (original packaging), unused product with written permission obtained in advance from Seller with return authorization number issued to buyer.
  • All approved returns must be shipped F.O.B (Sellers warehouse), and must be properly packaged by buyer.
  • Product returns are subject to a service charge of 30%, or such amount then in effect.
  • Used product or custom product is not returnable except for warranty purposes.
  • Product returns, which are not approved or are not prepaid, will not be accepted by manufacturer.
  • The products must be new, unused condition, not tampered with, in original packaging and returned at the customer's expense in the original packaging.
  • If your return is not due to any manufacturing defect then the original shipping cost and credit card/paypal processing fee will be deducted from the total refund
  • No returns accepted for Hygiene & Bath products due to health concerns
  • Custom orders defined as unique configuration for one customer, are non-refundable and non-returnable
  • Standard Manufacturer Terms & Conditions Apply for Return Policy of this Product

Please call us for specific details.

FAQs

Q: What makes the Joerns UltraCare XT bed different from standard hospital beds?
A: The UltraCare XT features advanced ergonomic positioning, a 650 lb. capacity, and optional Connexio® smart integration, providing both patient comfort and digital care management capabilities not found in standard beds.

Q: Is the UltraCare XT suitable for bariatric patients?
A: Yes. Its reinforced Toroidal Architecture™ frame supports up to 650 lbs., making it ideal for bariatric and high-dependency care environments.

Q: How low does the bed go for patient safety?
A: The bed lowers to a minimum height of 7 inches, helping reduce fall risks and making transfers safer for both patients and caregivers.

Q: Can this bed be used in home care settings?
A: Absolutely. While built for clinical-grade performance, its quiet motors, compact footprint, and adjustable height make it an excellent choice for home healthcare.

Q: Does the UltraCare XT integrate with smart care systems? A: Yes. It is Connexio®-ready, allowing healthcare providers to connec
t it to Joerns’ smart care network for equipment tracking, monitoring, and data analysis.

Q: What type of mattress fits the UltraCare XT bed?
A: The bed accommodates most standard medical and therapeutic mattresses designed for 35" x 80" or 35" x 76" sleep surfaces. Optional width and length extensions are also available.

Additional Information

  • Please call us for product customization as per your requirements
